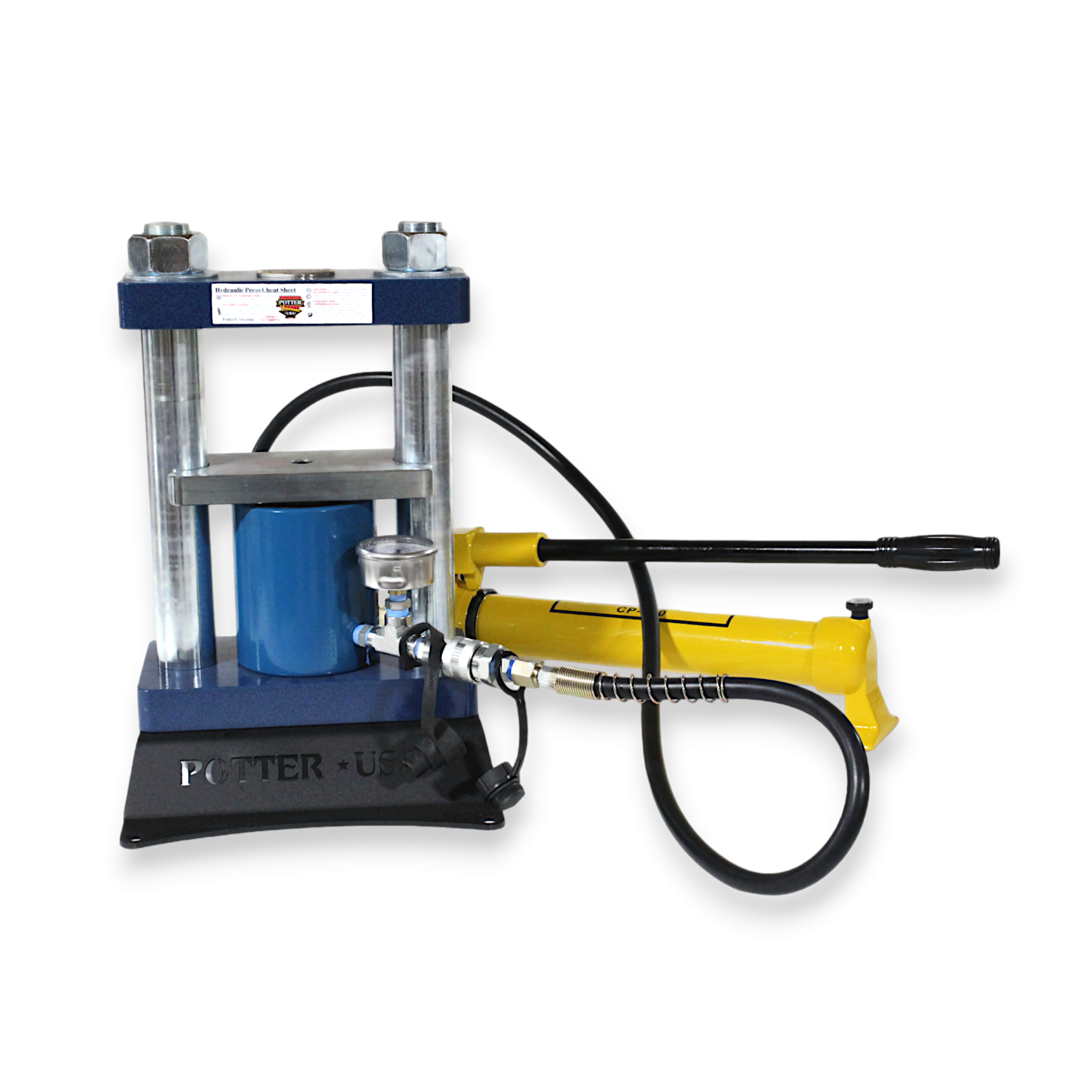

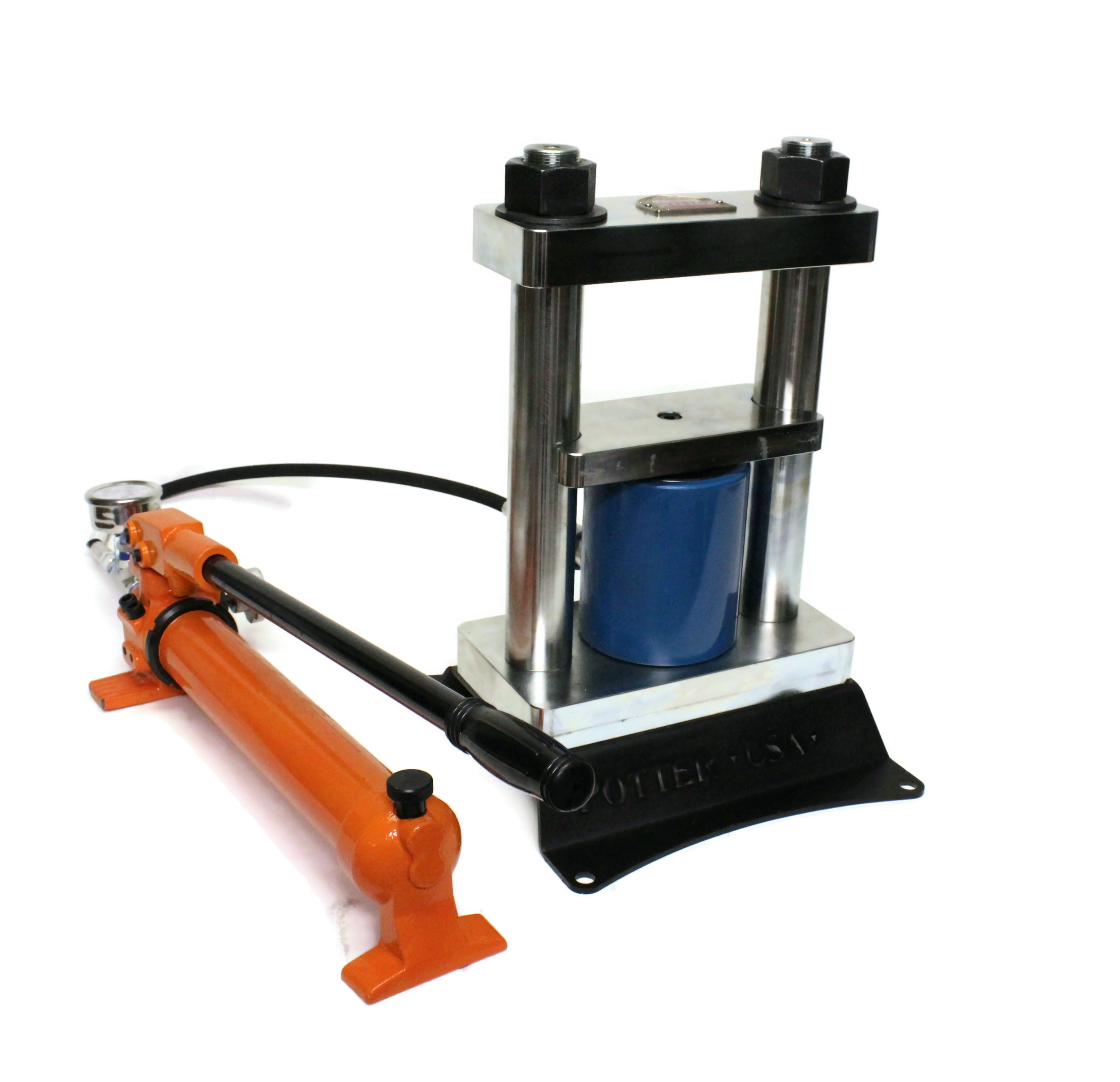

    Rincon Press - Manual - 20-Ton

    $950.00
    Please read the description before purchasing. Named after one of the mountain ranges that surround Potter USA, the Rincon Press is our newest, most compact, and most economical 20-ton jewelry hydraulic press. This press will work with pancake dies, impression dies, silhouette dies, and even our bracelet-forming frame.
    SKU: RIN-MAN
    Free shipping
    Delivery date: Approx. 4-6 weeks

    Rincon Press production lead time is currently 2 to 4 weeks.

    The purchase of a Rincon Press includes 15% OFF impression dies for 3 months AFTER the press is paid in full. To begin receiving this discount, complete your order for the Rincon Press first, then place a separate order for the impression dies. REMEMBER: To receive this discount you MUST be logged in to your account.

    The purchase of this press also includes a $250 shipping allowance.  Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $250. This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.

    Be sure you have a current phone number on record. We will give you a call between the hours of 9am-5pm MST (AZ) to confirm both address and phone number for the freight company.

    International Customers: Please contact us for a shipping quote before purchasing. [email protected] 520-777-6032

    Specifications:

    • Height: 18-7/16"
    • Width: 12"
    • Depth: 13"
    • Height and Width of Working Area: 4-11/16" (H) x 6" (W)
    • Upper and Lower Platen Measurements: 6" x 4"
    • Weight of Press Frame with Cylinder: 115 lbs
    • Weight of Hand Pump: 11 lbs.
    • Total Weight of Press Frame and Hand Pump: 126 lbs.
    • Approx. Space Needed on Workbench for Press: 22" x 20"
    • 5000 psi gauge included (will only need 3000 psi for any tools we sell). Watch Kevin discuss psi here: (40:25 mark) https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
    • Cylinder: 2" stroke (you WILL need spacers, 3-4 qty)
    • Current aluminum spacers work with this press. Insert them lengthwise into the press, rather than horizontally.
    • Parts are zinc plated to prevent rust. The base will be powder-coated black. Cylinder and pump colors may vary. The handle/pump/electric cylinder may be different than what appears in photos. You cannot choose a color.
    • The press does NOT need to be bolted down, but can be if desired.
    • The lower platen is bolted to the cylinder to prevent tipping.
    • The press frame DOES NOT flex.
    • Lifetime warranty on press frame, 2-year warranty on the cylinder and other parts.
    • CAN be upgraded to electric at a later date.

    If you already own an electric press from Potter USA, you'll be able to attach that motor to this press. If this is something you're interested in, please send an email to [email protected] c/o Adolfo, and include a photo of your current press setup.

    Layaway is available for this press: https://potterusa.com/rincon-press-layaway

    **This press may not accommodate some extra-large pancake dies (some box pancake dies, etc.), but we will be redesigning the pancake dies moving forward so they will work with this press.  Dies that will NOT fit are marked on their product listings.

    Links to Kevin talking about this newly designed press (in our Facebook Group, Potter People):
    https://www.facebook.com/kevin.potter.12935/videos/1526397787863431/?idorvanity=1253577991351417

    https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417

    Rincon Press production lead time is currently 2 to 4 weeks.

    The purchase of a Rincon Press includes 15% OFF impression dies for 3 months AFTER the press is paid in full. To begin receiving this discount, complete your order for the Rincon Press first, then place a separate order for the impression dies. REMEMBER: To receive this discount you MUST be logged in to your account.

    The purchase of this press also includes a $250 shipping allowance.  Final shipping cost will be determined before your press ships and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $250. This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.

    Be sure you have a current phone number on record. We will give you a call between the hours of 9am-5pm MST (AZ) to confirm both address and phone number for the freight company.

    International Customers: Please contact us for a shipping quote before purchasing. [email protected] 520-777-6032

    Specifications:

    • Height: 18-7/16"
    • Width: 12"
    • Depth: 13"
    • Height and Width of Working Area: 4-11/16" (H) x 6" (W)
    • Upper and Lower Platen Measurements: 6" x 4"
    • Weight of Press Frame with Cylinder: 115 lbs
    • Weight of Hand Pump: 11 lbs.
    • Total Weight of Press Frame and Hand Pump: 126 lbs.
    • Approx. Space Needed on Workbench for Press: 22" x 20"
    • 5000 psi gauge included (will only need 3000 psi for any tools we sell). Watch Kevin discuss psi here: (40:25 mark) https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
    • Cylinder: 2" stroke (you WILL need spacers, 3-4 qty)
    • Current aluminum spacers work with this press. Insert them lengthwise into the press, rather than horizontally.
    • Parts are zinc plated to prevent rust. The base will be powder-coated black. Cylinder and pump colors may vary. The handle/pump/electric cylinder may be different than what appears in photos. You cannot choose a color.
    • The press does NOT need to be bolted down, but can be if desired.
    • The lower platen is bolted to the cylinder to prevent tipping.
    • The press frame DOES NOT flex.
    • Lifetime warranty on press frame, 2-year warranty on the cylinder and other parts.
    • CAN be upgraded to electric at a later date.

    If you already own an electric press from Potter USA, you'll be able to attach that motor to this press. If this is something you're interested in, please send an email to [email protected] c/o Adolfo, and include a photo of your current press setup.

    Layaway is available for this press: https://potterusa.com/rincon-press-layaway

    **This press may not accommodate some extra-large pancake dies (some box pancake dies, etc.), but we will be redesigning the pancake dies moving forward so they will work with this press.  Dies that will NOT fit are marked on their product listings.

    Links to Kevin talking about this newly designed press (in our Facebook Group, Potter People):
    https://www.facebook.com/kevin.potter.12935/videos/1526397787863431/?idorvanity=1253577991351417

    https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
