Rincon Press LAYAWAY $50

$50.00

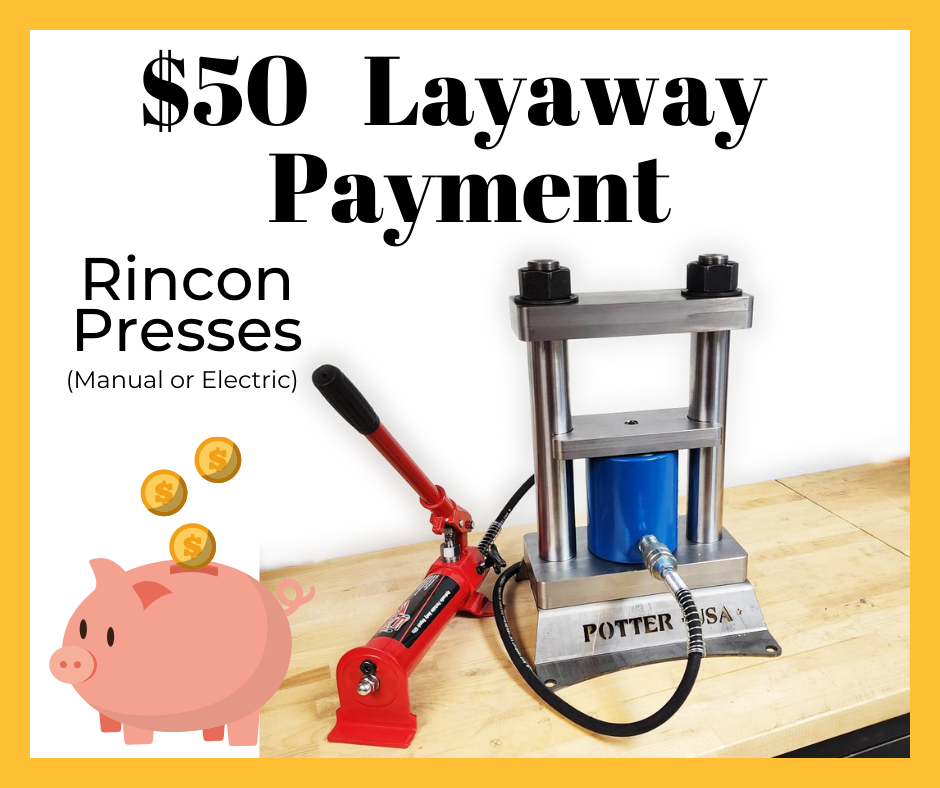

This option is for LAYAWAY Payment for the NEW Rincon Press. Manual: $995 Electric: $3,045 This is our newest, most compact, and most economical 20-ton jewelry hydraulic press. This press will work with pancake dies, impression dies, silhouette dies, and even our bracelet-forming frame.

SKU: Rincon Press LAYAWAY 50

Availability: In stock

Qty:

Free shipping

Overview

International Customers: Please email us at [email protected] for freight quote BEFORE PURCHASING. The motor we sell is wired to 110v. To ensure you do not damage the motor, you are responsible for either ensuring you have 110v power OR for purchasing a converter. Potter USA is not responsible for motor issues due to incompatible power sources.

This option is for LAYAWAY Payment for the NEW Rincon Press.

Manual: $995.
Electric: $3,045

You can select several of these to pay, $300, for example. Or, select one to make a payment of $100.

Press will not be made and shipped until a final payment is made.

The purchase of a Rincon press includes 15% OFF impression dies for 3 months AFTER the press is paid in full (must be purchased in a separate transaction AFTER completing the press purhase).

The purchase of this press also includes a $250 shipping allowance. (Final shipping cost will be determined after purchase and will vary by location. You will be invoiced for excess shipping charges if freight fees exceed $250.) This allowance has no cash value, and the price of the press will not be adjusted if you pick up locally.

Height: 18-7/16"
Width: 12"
Depth: 13"
Height and Width of Working Area: 4-11/16" (H) x 6" (W)
Upper and Lower Platen Measurements: 6" x 4"
Weight of Press Frame with Cylinder: 115 lbs
Weight of Hand Pump: 11 lbs.
Total Weight of Press Frame and Hand Pump: 126 lbs.
Approx. Space Needed on Workbench for Press: 22" x 20"
5000 psi gauge included (will only need 3000 psi for any tools we sell). Watch Kevin discuss psi here: (40:25 mark) https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
Cylinder: 2" stroke (you WILL need spacers, 3-4 qty)
Current aluminum spacers work with this press. Insert them lengthwise into the press, rather than horizontally.
Parts are zinc plated to prevent rust. The base will be powder-coated black. Cylinder and pump colors may vary. The handle/pump/electric cylinder may be different than what appears in photos.
The press does NOT need to be bolted down, but can be if desired.
The lower platen is bolted to the cylinder to prevent tipping.
The press frame DOES NOT flex.
Lifetime warranty on press frame, 2-year warranty on the cylinder and other parts.
CAN be upgraded to electric at a later date.

If you already own an electric press from Potter USA, you'll be able to attach that motor to this press. If this is something you're interested in, please send an email to [email protected] c/o Adolfo, and include a photo of your current press setup.

**This press may not accommodate some extra-large pancake dies (some box pancake dies, etc.), but we will be redesigning the pancake dies moving forward so they will work with this press.

Links to Kevin talking about this newly designed press (in our Facebook Group, Potter People):
https://www.facebook.com/kevin.potter.12935/videos/1526397787863431/?idorvanity=1253577991351417

https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417

This option is for LAYAWAY Payment for the NEW Rincon Press.

Manual: $995.
Electric: $3,045

You can select several of these to pay, $300, for example. Or, select one to make a payment of $100.

Press will not be made and shipped until a final payment is made.

The purchase of a Rincon press includes 15% OFF impression dies for 3 months AFTER the press is paid in full (must be purchased in a separate transaction AFTER completing the press purhase).

Height: 18-7/16"
Width: 12"
Depth: 13"
Height and Width of Working Area: 4-11/16" (H) x 6" (W)
Upper and Lower Platen Measurements: 6" x 4"
Weight of Press Frame with Cylinder: 115 lbs
Weight of Hand Pump: 11 lbs.
Total Weight of Press Frame and Hand Pump: 126 lbs.
Approx. Space Needed on Workbench for Press: 22" x 20"
5000 psi gauge included (will only need 3000 psi for any tools we sell). Watch Kevin discuss psi here: (40:25 mark) https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
Cylinder: 2" stroke (you WILL need spacers, 3-4 qty)
Current aluminum spacers work with this press. Insert them lengthwise into the press, rather than horizontally.
Parts are zinc plated to prevent rust. The base will be powder-coated black. Cylinder and pump colors may vary. The handle/pump/electric cylinder may be different than what appears in photos.
The press does NOT need to be bolted down, but can be if desired.
The lower platen is bolted to the cylinder to prevent tipping.
The press frame DOES NOT flex.
Lifetime warranty on press frame, 2-year warranty on the cylinder and other parts.
CAN be upgraded to electric at a later date.

**This press may not accommodate some extra-large pancake dies (some box pancake dies, etc.), but we will be redesigning the pancake dies moving forward so they will work with this press.

Links to Kevin talking about this newly designed press (in our Facebook Group, Potter People):
https://www.facebook.com/kevin.potter.12935/videos/1526397787863431/?idorvanity=1253577991351417

https://www.facebook.com/kevin.potter.12935/videos/545339920881737/?idorvanity=1253577991351417
