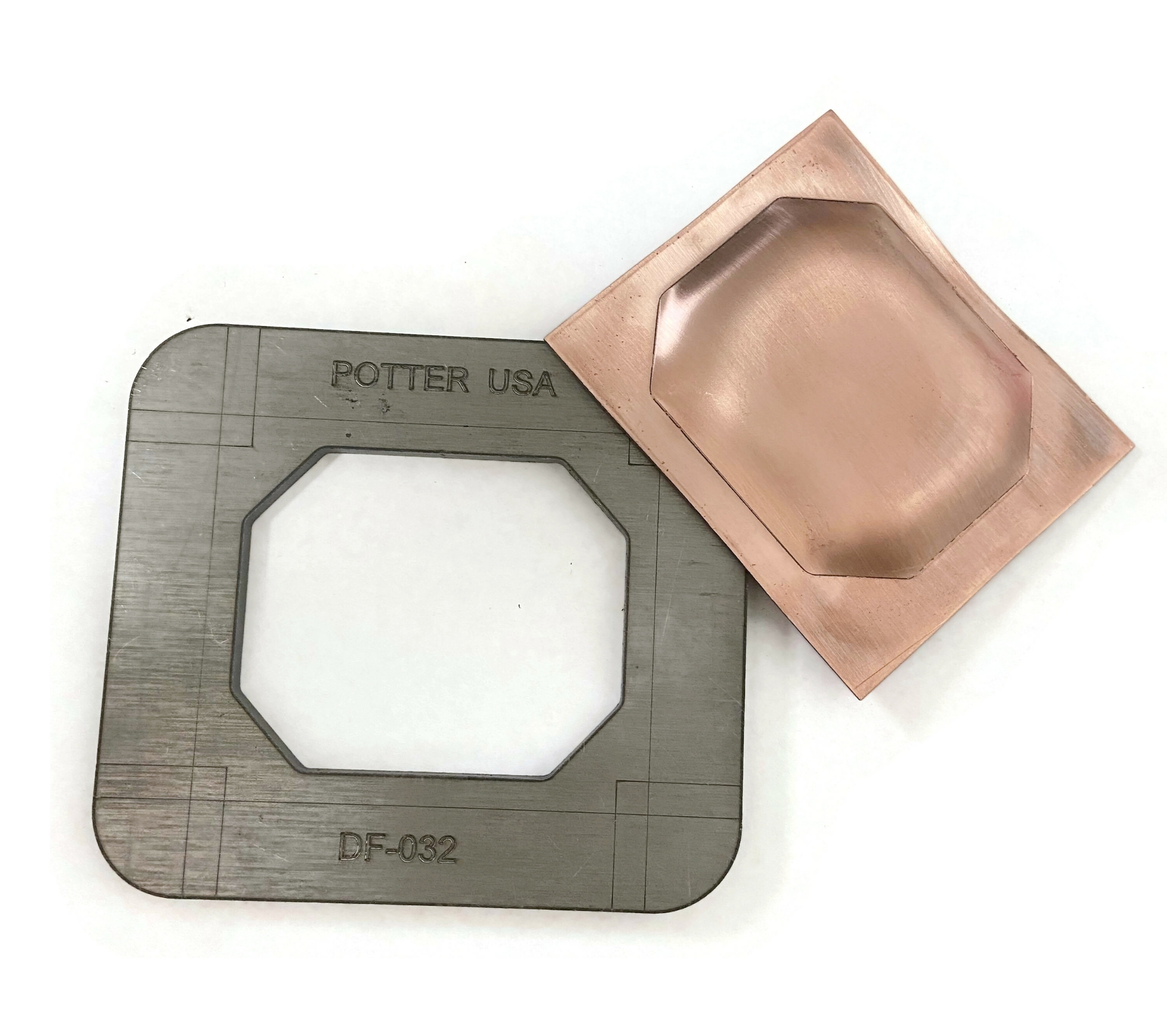

Dish Former Silhouette Die - 3" Octagon Belt Buckle

$40.00

Your price: $30.00

Brand new! Use this tool to make shallow domed forms, such as trinket dishes, lockets, small containers, etc. 3" wide x 2-1/2" tall, 1/4" thick. Must be used with a large sheet of urethane (available separately). ***Will not fit in the discontinued Potter USA medium press***

SKU: SD-DF-032

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: In stock

Qty:

Overview

Must use with urethane sheet (available separately)
Recommended use with 18g or thicker nonferrous metal
Watch Kevin's live video on Facebook for instructions on use: https://www.facebook.com/1640860751/videos/3191288137751079/
Anneal your metal before use and between pressings to prevent it from splitting at the edge of the die
Leave at least 1/4" (preferably 1/2") edge around the shape to allow for the metal to be formed into the die
Can stack two dies and make deeper dishes. Anneal and press multiple times, filling the center of the domed metal with small pieces of urethane and topping it with the urethane sheet.
If your upper platen is smaller/narrower than the shape of the die, place a larger spacer on top of the urethane sheet before use to ensure even pressure.

Must use with urethane sheet (available separately)
Recommended use with 18g or thicker nonferrous metal
Watch Kevin's live video on Facebook for instructions on use: https://www.facebook.com/1640860751/videos/3191288137751079/
Anneal your metal before use and between pressings to prevent it from splitting at the edge of the die
Leave at least 1/4" (preferably 1/2") edge around the shape to allow for the metal to be formed into the die
Can stack two dies and make deeper dishes. Anneal and press multiple times, filling the center of the domed metal with small pieces of urethane and topping it with the urethane sheet.
If your upper platen is smaller/narrower than the shape of the die, place a larger spacer on top of the urethane sheet before use to ensure even pressure.
