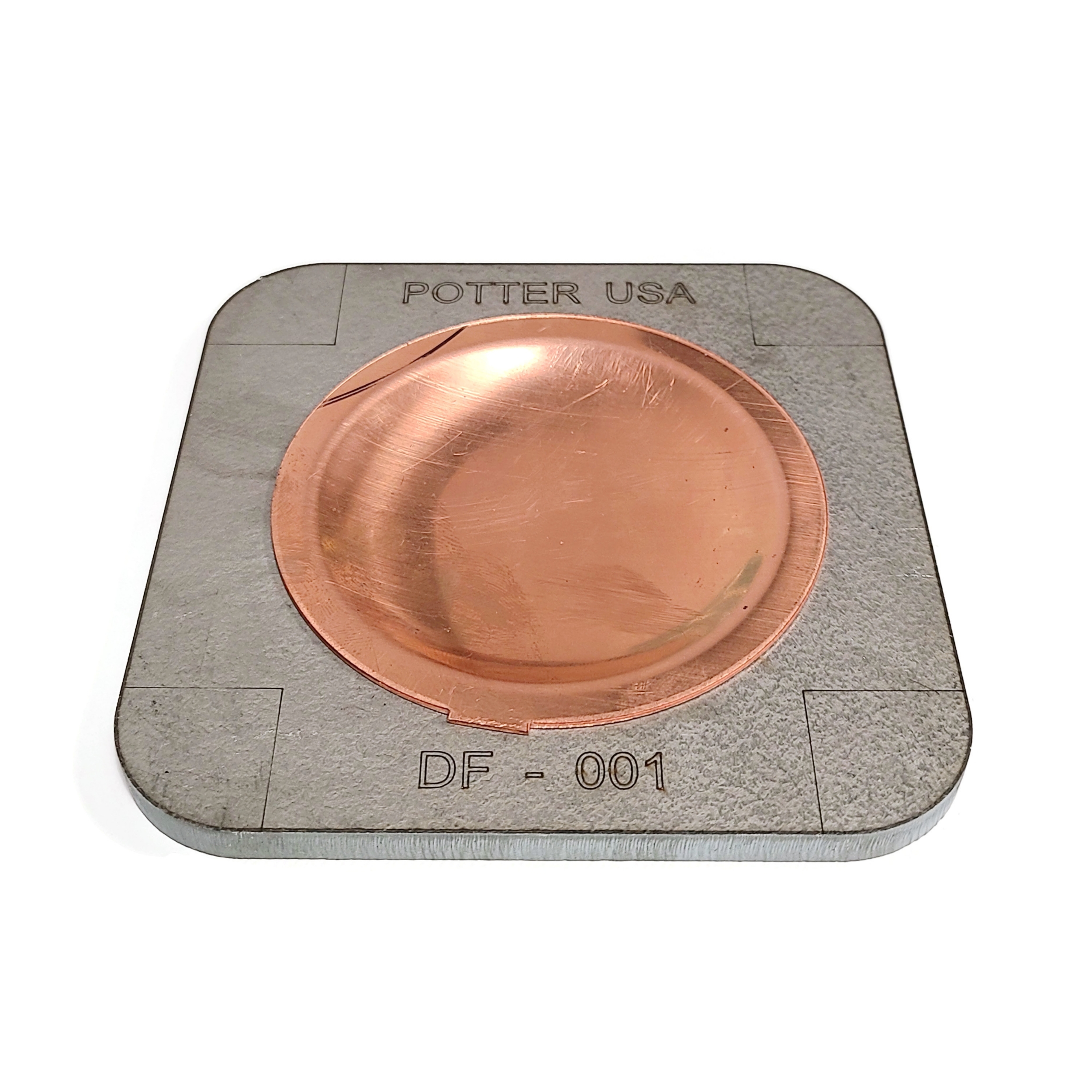

Dish Former Silhouette Die - 2.5in. Circle

Brand new! Use this tool to make shallow domed forms, such as trinket dishes, lockets, small containers, etc. 2-1/2" diameter. 1/4" thick. Must be used with a large sheet of urethane (available separately). Pairs well with PD661A

SKU: SD-DF-001

Must use with urethane sheet (available separately)
Recommended use with 18g or thicker nonferrous metal
Watch Kevin's live video on Facebook for instructions on use: https://www.facebook.com/1640860751/videos/3191288137751079/
Anneal your metal before use and between pressings to prevent it from splitting at the edge of the die
Leave at least 1/4" (preferably 1/2") edge around the shape to allow for the metal to be formed into the die
Can stack two dies and make deeper dishes. Anneal and press multiple times, filling the center of the domed metal with small pieces of urethane and topping it with the urethane sheet.
If your upper platen is smaller/narrower than the shape of the die, place a larger spacer on top of the urethane sheet before use to ensure even pressure.

$40.00

increase decrease

Availability: In stock

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Overview

Must use with urethane sheet (available separately)
Recommended use with 18g or thicker nonferrous metal
Watch Kevin's live video on Facebook for instructions on use: https://www.facebook.com/1640860751/videos/3191288137751079/
Anneal your metal before use and between pressings to prevent it from splitting at the edge of the die
Leave at least 1/4" (preferably 1/2") edge around the shape to allow for the metal to be formed into the die
Can stack two dies and make deeper dishes. Anneal and press multiple times, filling the center of the domed metal with small pieces of urethane and topping it with the urethane sheet.
If your upper platen is smaller/narrower than the shape of the die, place a larger spacer on top of the urethane sheet before use to ensure even pressure.

Customers who bought this item also bought

Dish Former Silhouette Die -3in. Rounded Square

SD-DF-003

Brand new! Use this tool to make shallow domed forms, such as trinket dishes, lockets, small containers, etc. 3" x 3" Square with Slightly Rounded Edges 1/4" thick. Must be used with a large sheet of urethane (available separately). ***Will not fit in the discontinued Potter USA medium press***

$40.00

Urethane Sheet for Dish Former Silhouette Dies

DFUrethane

For use only with Dish Former Silhouette Dies. ~4.75" x 4.75" 60-70 durometer. Color may vary. 1/4" thick.

$20.00

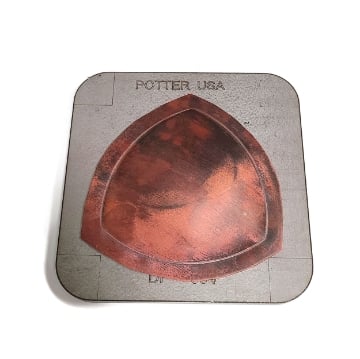

Dish Former Silhouette Die -3in. Trillion
