    20 ton Standard Jewelry Press - No Jack

    $935.00
    This press does NOT include the hydraulic jack or pressure gauge. Outer Dimensions: 23 inches high x 16.5 inches wide x 7 inches long. Lower platen working area is 6" x 8".
    SKU: 20 ton w/out jack
    Availability: In stock

    Please allow 5 to 7 business days in order to prepare this item for shipment.

    International Sites will be charged additional shipping upon review of the order. We will contact you for payment.

    Shipped FREIGHT.  See notes below.

    FREIGHT DELIVERY: The minimum freight charge is $225 in the continental US. When order is placed we will do a quote for actual amount of shipping. If the charge is more, we will notify you and invoice you for the difference in price.

    To save money - an option is to pick it up at the freight depot. Product is on a 2 foot x 2 foot wooden pallet. This option will save around $75.

    Truck will deliver to your home - to your door. If there is a request to bring the press inside, there is an additional fee of at least $85 that you will be assessed. Any additional requests have fees attached by the shipping company. We will then bill you for the additional fees.

    PURCHASE in AUSTRALIA from GemCuts.

    PURCHASE in Paris, France from Benny Reinhold email [email protected]

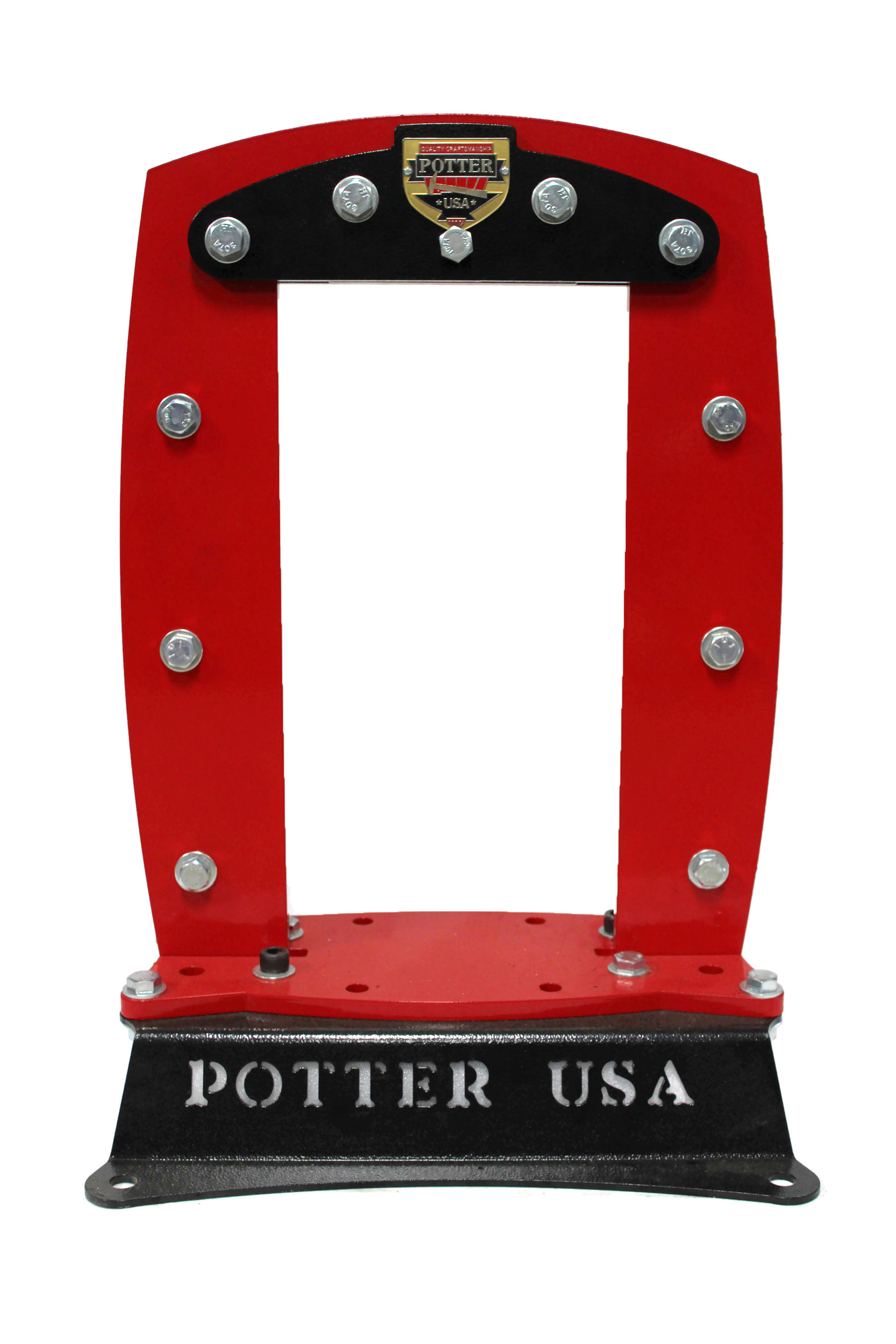

    20 Ton Hydraulic Jewelry Press Without Jack or Gauge

    The Potter USA Press has been designed to safely and efficiently form metal in a jewelry studio environment. It has many features including its 1/2 inch steel plate construction, with no welds on the entire press (just on the upper and lower platens). Bolts, nuts and support brackets make it extremely strong and rigid. The press is compact and elegantly designed.

    Must be bolted to a strong table for safe use. Bolt to surface through the feet, using 1/2 13 thread bolt or a strong C-clamp. So not use a portable tool chest or any other light table, as it can all fall over during use.

    The upper platen is 8 inches wide x 5 in deep, and the Lower Platen is 8 inches wide x 6 inches deep x 1 inch thick resist flexing and distortion under the most extreme use.

    The upper platen is held in with a bolt and is removable. The upper and lower platens can be replaced with 8 in x 8 in aluminum platens, available for order on our website.

    Outer Dimensions: 23 inches high x 16.5 inches wide x 7 inches long.

    The space between platens is approx. 7 inches if you use a standard height jack, and 9 inches if you use a low profile jack. The low profile jack allows for more space to do deep-draw work.

    The frame has a lifetime warranty. Should it ever be damaged or malfunction in anyway, it will be repaired or replaced at no cost.

    Press is made of 1/2" thick steel plate. It has been tested to far exceed the 20 ton rating. The frame and platens are powder-coated.
    Attributes:

    • Affordable
    • Highly compact
    • Bench mounted
    • Very easy to use
    • Many accessories available
    • Works with other press manufacturer's accessories
    • Lifetime Warranty on press frame
    • Space between platens: 7 inches with a standard height jack or 9 inches with a low profile jack.
    • 6 inch deep x 8 inch wide lower platen
    • Outer dimensions: 23 inches High x 19 inches wide x 10 inches deep.
    • Frame is made to allow for transition to an electric hydraulic system if requested.

    The frame will fit a 20 ton Harbor Freight jack as well as any other 20 ton jack on the market. We can assist with jack selection.









    Please allow 5 to 7 business days in order to prepare this item for shipment.

    International Sites will be charged additional shipping upon review of the order. We will contact you for payment.

    Shipped FREIGHT.  See notes below.

    FREIGHT DELIVERY: The minimum freight charge is $225 in the continental US. When order is placed we will do a quote for actual amount of shipping. If the charge is more, we will notify you and invoice you for the difference in price.

    To save money - an option is to pick it up at the freight depot. Product is on a 2 foot x 2 foot wooden pallet. This option will save around $75.

    Truck will deliver to your home - to your door. If there is a request to bring the press inside, there is an additional fee of at least $85 that you will be assessed. Any additional requests have fees attached by the shipping company. We will then bill you for the additional fees.

    PURCHASE in AUSTRALIA from GemCuts.

    PURCHASE in Paris, France from Benny Reinhold email [email protected]



    20 Ton Hydraulic Jewelry Press Without Jack or Gauge

    The Potter USA Press has been designed to safely and efficiently form metal in a jewelry studio environment. It has many features including its 1/2 inch steel plate construction, with no welds on the entire press (just on the upper and lower platens). Bolts, nuts and support brackets make it extremely strong and rigid. The press is compact and elegantly designed.

    Must be bolted to a strong table for safe use. Bolt to surface through the feet, using 1/2 13 thread bolt or a strong C-clamp. So not use a portable tool chest or any other light table, as it can all fall over during use.

    The upper platen is 8 inches wide x 5 in deep, and the Lower Platen is 8 inches wide x 6 inches deep x 1 inch thick resist flexing and distortion under the most extreme use.

    The upper platen is held in with a bolt and is removable. The upper and lower platens can be replaced with 8 in x 8 in aluminum platens, available for order on our website.

    Outer Dimensions: 23 inches high x 16.5 inches wide x 7 inches long.

    The space between platens is approx. 7 inches if you use a standard height jack, and 9 inches if you use a low profile jack. The low profile jack allows for more space to do deep-draw work.

    The frame has a lifetime warranty. Should it ever be damaged or malfunction in anyway, it will be repaired or replaced at no cost.

    Press is made of 1/2" thick steel plate. It has been tested to far exceed the 20 ton rating. The frame and platens are powder-coated.
    Attributes:

    • Affordable
    • Highly compact
    • Bench mounted
    • Very easy to use
    • Many accessories available
    • Works with other press manufacturer's accessories
    • Lifetime Warranty on press frame
    • Space between platens: 7 inches with a standard height jack or 9 inches with a low profile jack.
    • 6 inch deep x 8 inch wide lower platen
    • Outer dimensions: 23 inches High x 19 inches wide x 10 inches deep.
    • Frame is made to allow for transition to an electric hydraulic system if requested.

    The frame will fit a 20 ton Harbor Freight jack as well as any other 20 ton jack on the market. We can assist with jack selection.
