Humpback Ring Impression Die Pressing Kit

$85.00

Kit includes: Ring Shank Pusher - Rectangular metal bar 3 1/2" x 1 1/4" x 1 1/4" Top Pusher #1, 2" wide x 1" tall Top Pusher #2 2" wide x 3/4" tall Ring Template A shortened version of Kevins Live video demonstrating this in use can be found here: https://www.youtube.com/watch?v=6PnKPL2QqSA

SKU: HumpbackRing

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: In stock

Qty:

Overview

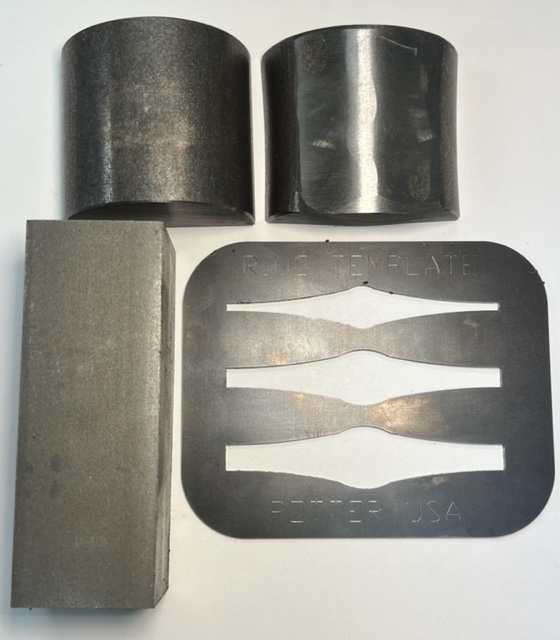

Kit includes:
Ring Shank Pusher - Rectangular metal bar 3 1/2" x 1 1/4" x 1 1/4"
Top Pusher #1, 2" wide x 1" tall
Top Pusher #2 2" wide x 3/4" tall
Ring Template
Ring #1 3 7/8" x 1/8" to 1/2" at tallest point

Ring #2 3 7/8" x 1/4" to 5/8" at tallest point

Ring #3 3 7/8"x 5/16" to 11/16" at tallest point

To be used with Impression Die Rings with a "hump" in the middle, for use in the hydraulic press to help get the image in just one or two annealings. Watch video on You Tube for use instructions.

A shortened version of Kevin's Live video demonstrating this in use can be found here: https://www.youtube.com/watch?v=6PnKPL2QqSA

Link to instructions on our site: https://www.potterusa.com/tool-instructions#Humpback

Ring #2 3 7/8" x 1/4" to 5/8" at tallest point

Ring #3 3 7/8"x 5/16" to 11/16" at tallest point

To be used with Impression Die Rings with a "hump" in the middle, for use in the hydraulic press to help get the image in just one or two annealings. Watch video on You Tube for use instructions.

A shortened version of Kevin's Live video demonstrating this in use can be found here: https://www.youtube.com/watch?v=6PnKPL2QqSA

Link to instructions on our site: https://www.potterusa.com/tool-instructions#Humpback
