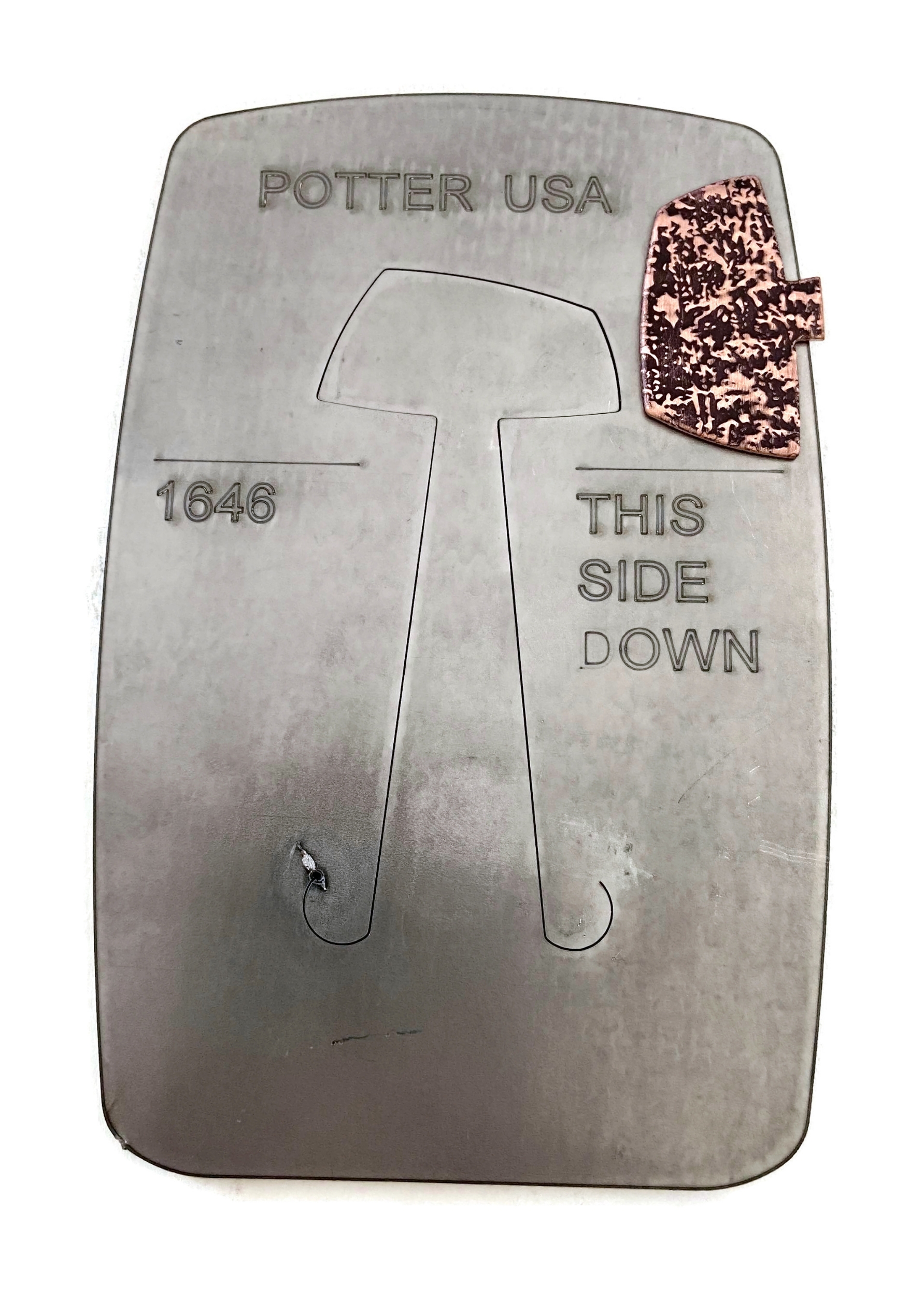

Pancake Die 1646 Irregular Trapezoid

This easy-to-use ear wire jig makes it easy to make repeatable, consistently sized shepherd’s hook-style ear wires. See long description for instructions, and watch the video below! This tool is NOT used in a hydraulic press. Finished ear wire is approx. 22mm long, 10.5mm wide, and features an outward bend in the end of the wire to help secure it in the ear when worn.

Design: 1-1/16”x 3/4" Die itself: 5” x 2-15/16”

This die must be used in a hydraulic press. Shape measures 1-3/4" x 3/4". Overall die measures 5-1/4" x 3-3/4". This die pairs well with PD 1639 and PD 1641.

This die must be used in a hydraulic press. Shape measures 3/4" x 1". Overall die measures 5-1/4" x 3-3/8".

Overall Design Size: approximately 2" x 7" Designed for use in a rolling mill.
