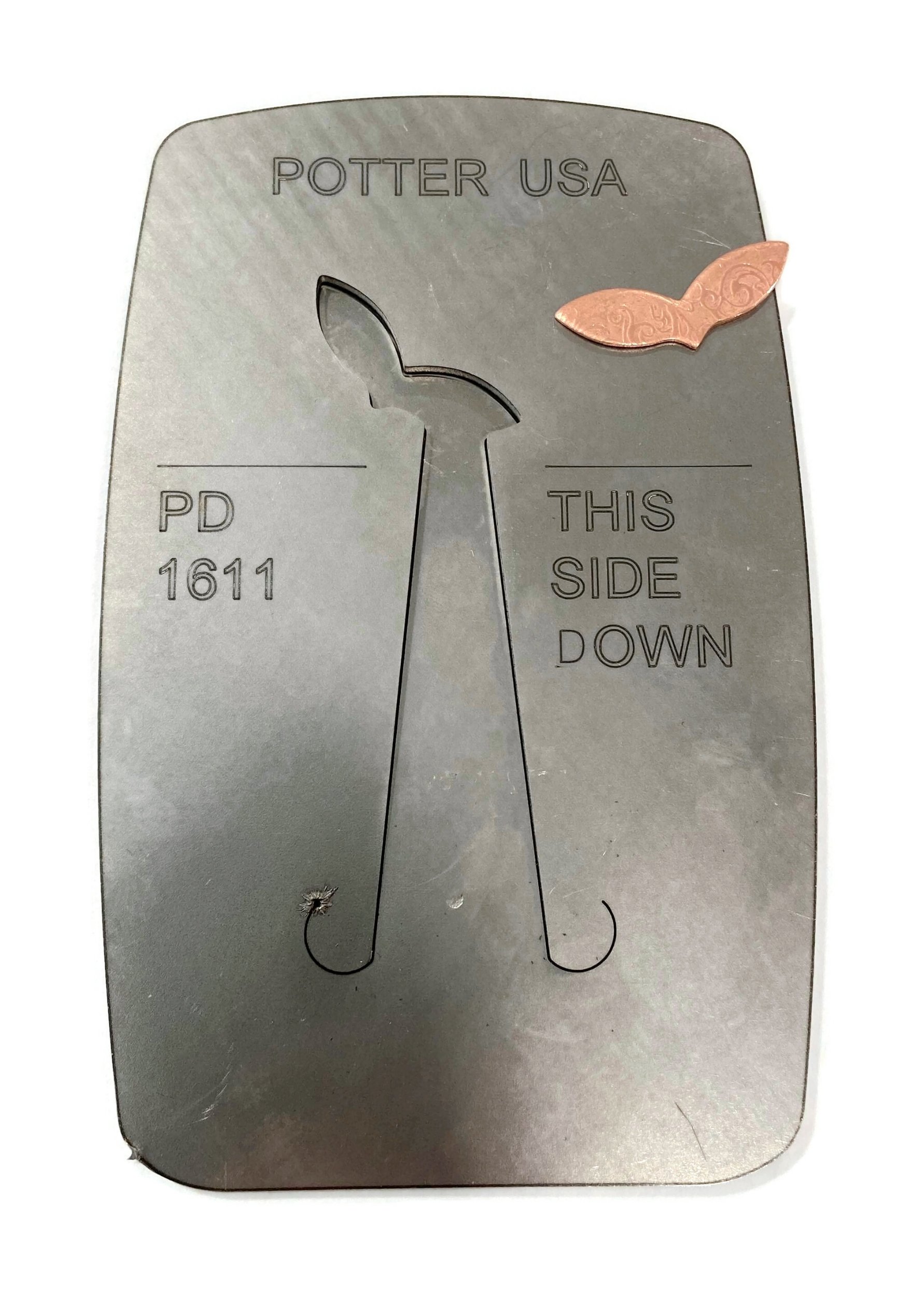

Pancake Die 1611 - Leaf Trio Middle

This die must be used in a hydraulic press. This die is coordinated to work with PD 1610 and PD 1611. Shape measures 1-3/8" x15/16". Overall die measures 5-5/16" x 3-3/8".

This die must be used in a hydraulic press. This die is coordinated to work with PD 1611 and PD 1612. Shape measures 1" x 1/4". Overall die measures 5-1/8" x 3-3/8".

This spacer measures 7-3/4" in length, 4-1/2" in width, and is 1/2" thick. It is nonmagnetic. Spacers are used in the press to lessen the amount of effort needed to extend the jack and activate the items being used in the press. Top and bottom platens are not meant to touch - it will cause the jack to overextend and cause leaking, or for jack to fail. Always use spacers on lower platen to take up space between platens.

This die must be used in a hydraulic press. The shape measures 1-5/8" x 1". Overall die measurements are 5-9/16" x 3-9/16".

Overall Design Size: approximately 2" x 6-7/8". Designed for use in a rolling mill.

Design: 1-11/16" x 3". Die: 5-5/8" x 4-15/16".
