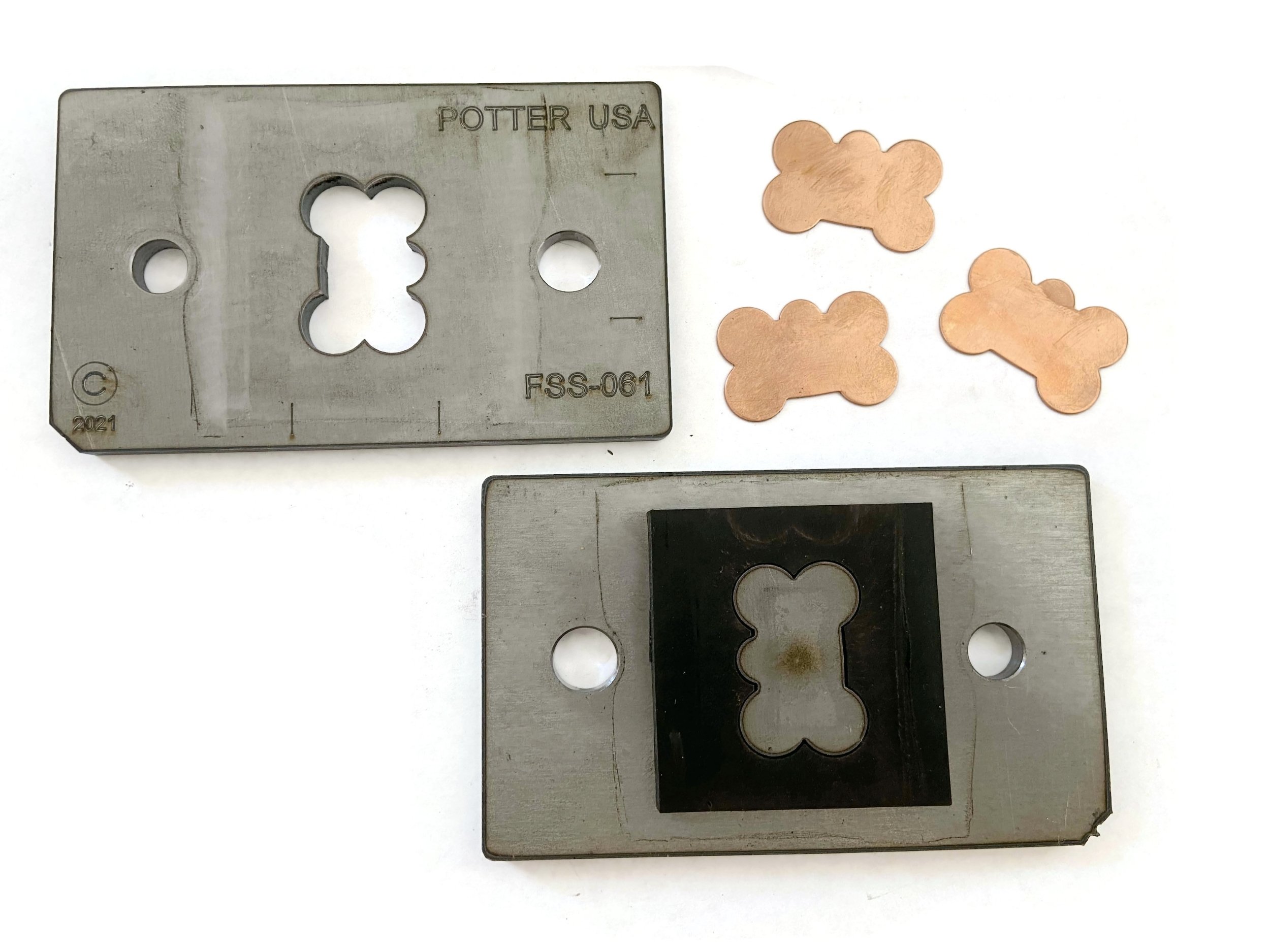

    FSS (Fast Stamping System) Die Set FSS-061 Dog Bone with Hole Tab

    $70.00
    $59.50
    Design: 1-1/2" x 7/8" Die Set Includes: Die Top, with precision-welded cutter Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe. MUST BE USED WITH THE STANDARD FSS DIE SHOE (available separately) Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk
    SKU: FSS-061
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Availability: In stock

    Design: 1-1/2" x 7/8"

    Die Set Includes:
    Die Top, with precision-welded cutter
    Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die
    Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe.

    MUST BE USED WITH THE STANDARD FSS DIE SHOE (available separately)
    Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk

    Design: 1-1/2" x 7/8"

    Die Set Includes:
    Die Top, with precision-welded cutter
    Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die
    Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe.

    MUST BE USED WITH THE STANDARD FSS DIE SHOE (available separately)
    Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk
