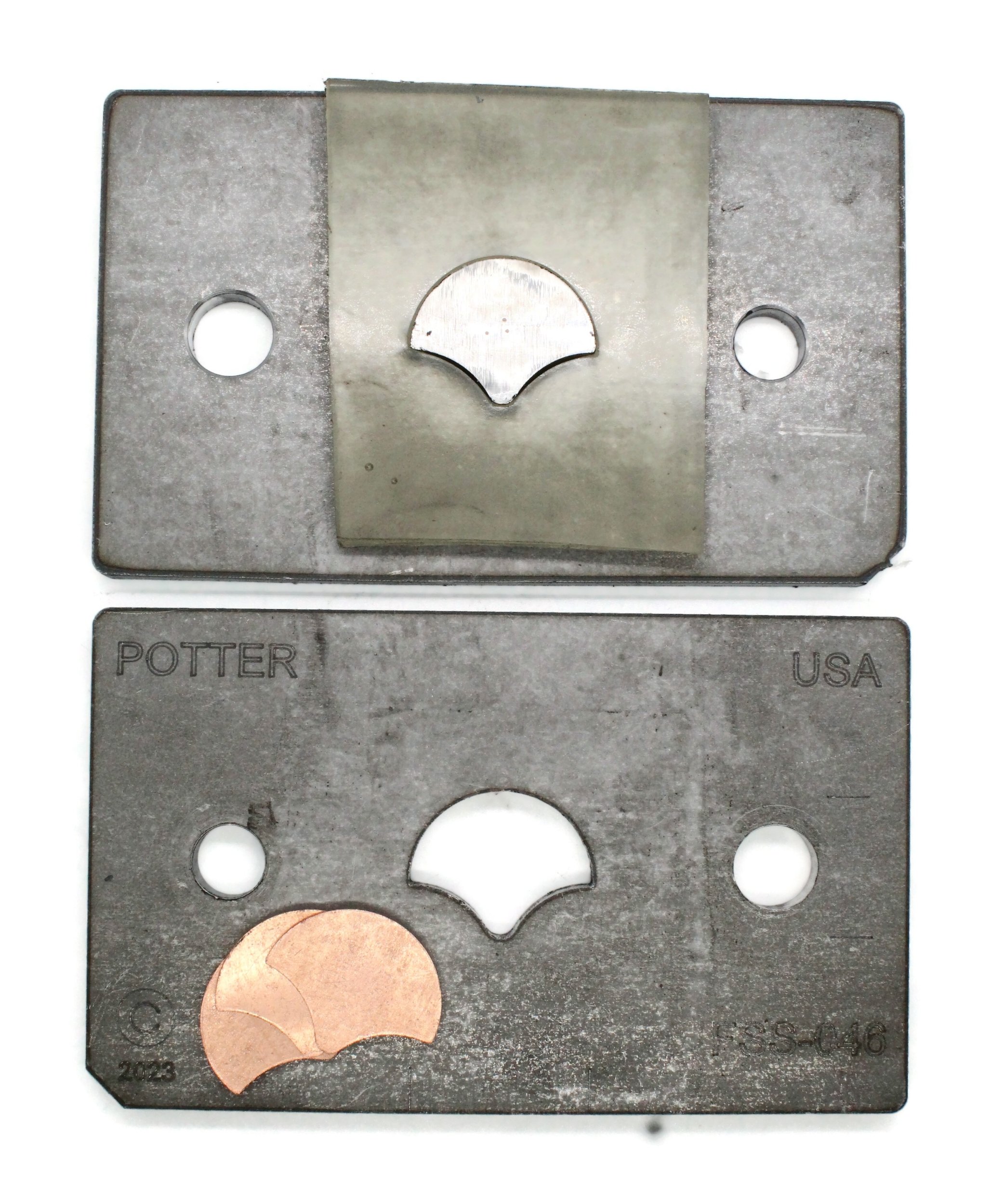

FSS (Fast Stamping System) Die Set FSS-046 Fan

$70.00

Design: 1-1/8” x 7/8” (29mm x 22mm) Die Set Includes: Die Top, with precision-welded cutter Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe. MUST BE USED WITH THE FSS DIE SHOE (available separately) Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk

SKU: FSS-046

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Availability: In stock

Qty:

Overview

Design: 1-1/8” x 7/8” (29mm x 22mm)
Die Set Includes:
Die Top, with precision-welded cutter
Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die
Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe.

MUST BE USED WITH THE FSS DIE SHOE (available separately)
Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk

Design: 1-1/8” x 7/8” (29mm x 22mm)
Die Set Includes:
Die Top, with precision-welded cutter
Die Bottom, with precision-registered center hole and metal guide marks on bottom- and right-side edges to assist in lining up metal in the die
Urethane: Specific to each die set; not interchangeable with other designs. Color may vary. The components of each Die set are not interchangeable with other die sets, but all can be used with a single, standard Die Shoe.

MUST BE USED WITH THE FSS DIE SHOE (available separately)
Watch Kevin demonstrate how to use this die: https://youtu.be/7Gl-ShVKtlk
